The most frequently asked question we receive regarding flex circuits is “how much can I bend a flex?”

The standard IPC answer is 10 times the thickness of the material. There is a section in IPC-2223 that offers reasonable information on bend radius calculations. But there are other factors that need consider when designing a flex circuit for high reliability.

1. Grain direction in the copper is important for tight bend radii.

2. The stiffness of a flex is primarily driven by the copper weight but kapton thickness is also critical.

3. Where is the bend located?

Here are some other thoughts of how to increase reliability for a flex circuit application.

REDUCE OVERALL THICKNESS IN THE FLEX AREA

1. Reduce the base copper weight (and the corresponding adhesive thicknesses) or reduce the dielectric thickness.

2. Use adhesiveless base materials. Adhesiveless materials will usually reduce the starting thickness of each substrate by 12-25um (0.0005”- 0.0010”) when compared to adhesive based substrates.

3. Eliminate copper plating on the conductors in the flexing area (dynamic region) by utilizing selective (pads plating/button plating-only) allowing the circuit to have increased flexibility.

MAKE THE CIRCUIT ROBUST TO WITHSTAND FLEXING

1. Conductors should be staggered from layer to layer and not stacked on top of each other to increase flexibility.

2. Conductor thickness and width should remain constant in bending areas.

3. Balance the conductor weights and material thicknesses on each side of the neutral bend axis.

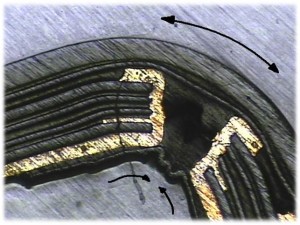

4. Bend radius of a flex should be approximately 10 times the material thickness and at least 500um (0.020”) away from the plated through hole.

5. Incorporate tear stops or reliefs for slits in the circuit. The end of the slit represents a vulnerable point for a tear to start and to propagate.
